Halton AWE-C 双层百叶风口
用于水平送风或者排风，前端叶片为固定式，并有15度偏转角。
Horizontal air supply, suitable also for exhaust. Fixed front vanes, stable throw pattern with vertical 15° deflection.
概述Overview
- 用于水平送风或者排风
Horizontal air supply, suitable also for exhaust
- 前端叶片为固定式，并有15度偏转角。
Fixed front vanes, stable throw pattern with vertical 15° deflection
- 背部叶片可调节，用于改变水平气流方向。
Adjustable rear vanes for horizontal deflection of the air jet
- 表面处理：粉末喷涂
Surface treatment: Power painting
- 可选附件:过滤网/铝制调节阀/静压箱
Optional accessories: polyester filter/aluminium adjustment damper/Plenum
尺寸Dimensions
| 规格Size LxH | L1 | H1 | L2 | H2 | 可选静压箱 Plenum option | 静压箱进风口Plenum inlet size |
| 200×100 | 235 | 135 | 195 | 95 | (L+60) x (W+60) x 300 | Φ100 |
| 300×100 | 335 | 135 | 295 | 95 | (L+60) x (W+60) x 300 | Φ100 |
| 400×100 | 435 | 135 | 395 | 95 | (L+60) x (W+60) x 300 | Φ100 |
| 400×200 | 435 | 235 | 395 | 195 | (L+60) x (W+60) x 300 | Φ150 |
| 500×200 | 535 | 235 | 495 | 195 | (L+60) x (W+60) x 300 | Φ150 |
| 600×200 | 635 | 235 | 595 | 195 | (L+60) x (W+60) x 300 | Φ200 |
| 700×200 | 735 | 235 | 695 | 195 | (L+60) x (W+60) x 300 | Φ200 |
| 1000×200 | 1035 | 235 | 995 | 195 | (L+60) x (W+60) x 300 | Φ250 |
| 1000×300 | 1035 | 335 | 995 | 295 | (L+60) x (W+60) x 300 | Φ250 |
安装Installation
确保安装孔尺寸大于等于L x H, 铝合金调节阀可以从正面仰视方向扳动手柄，实现风量调节。与静压箱相连使用可拆卸方式。
Ensure the installation hole size not less than L x H, aluminium adjustment damper can be adjusted from downside to achieve concerned airflow.
Plenum and grill connection is removeable for easy maintenance.
Downloads
"*" indicates required fields

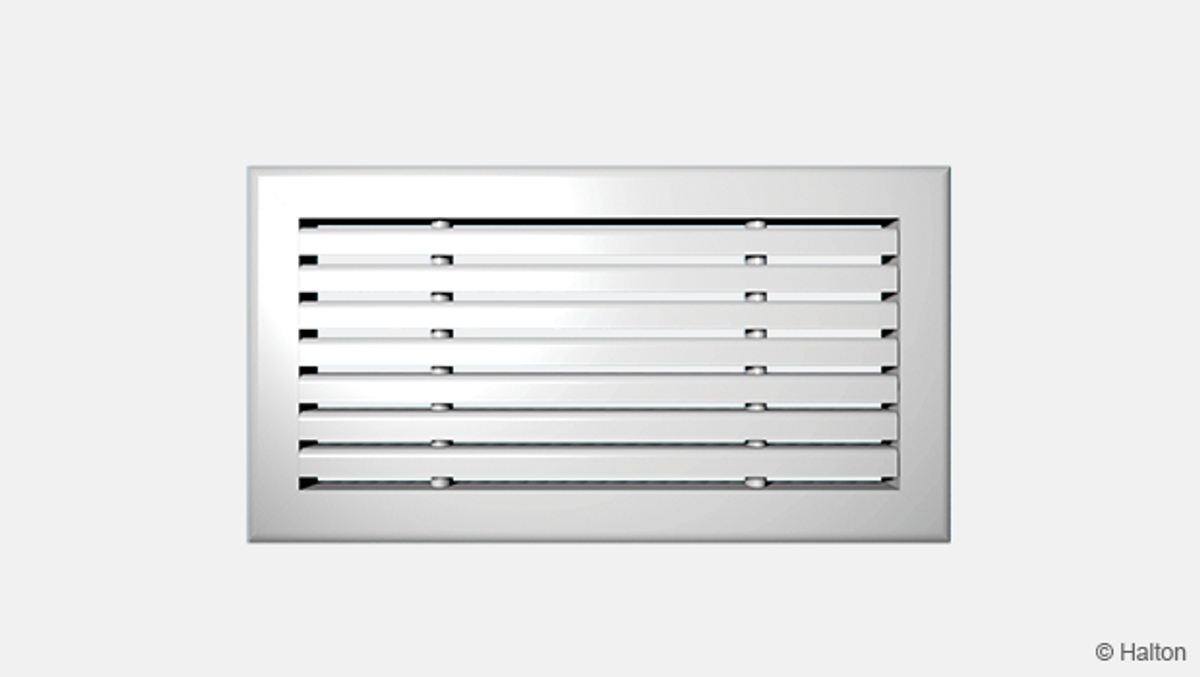

AHD 排风格栅
product

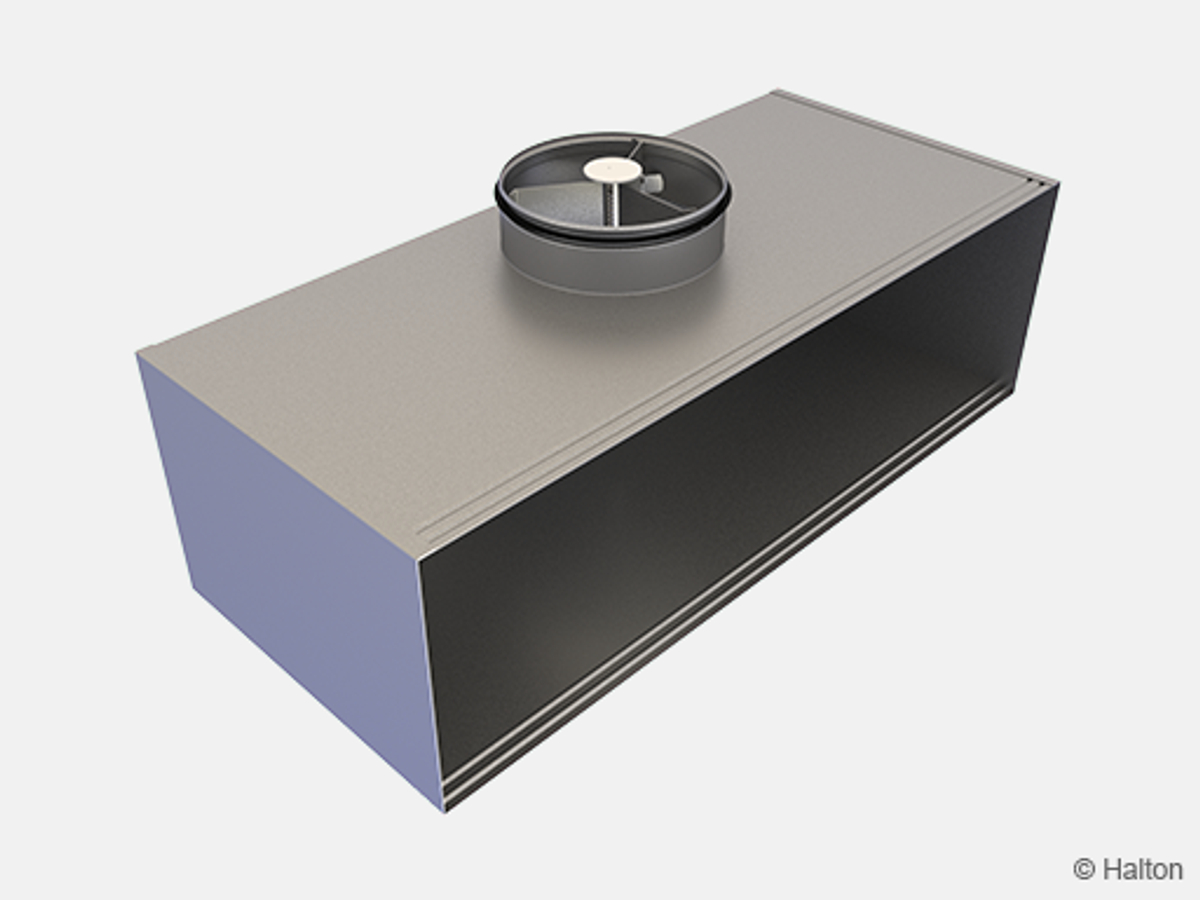

BDR 静压箱
product

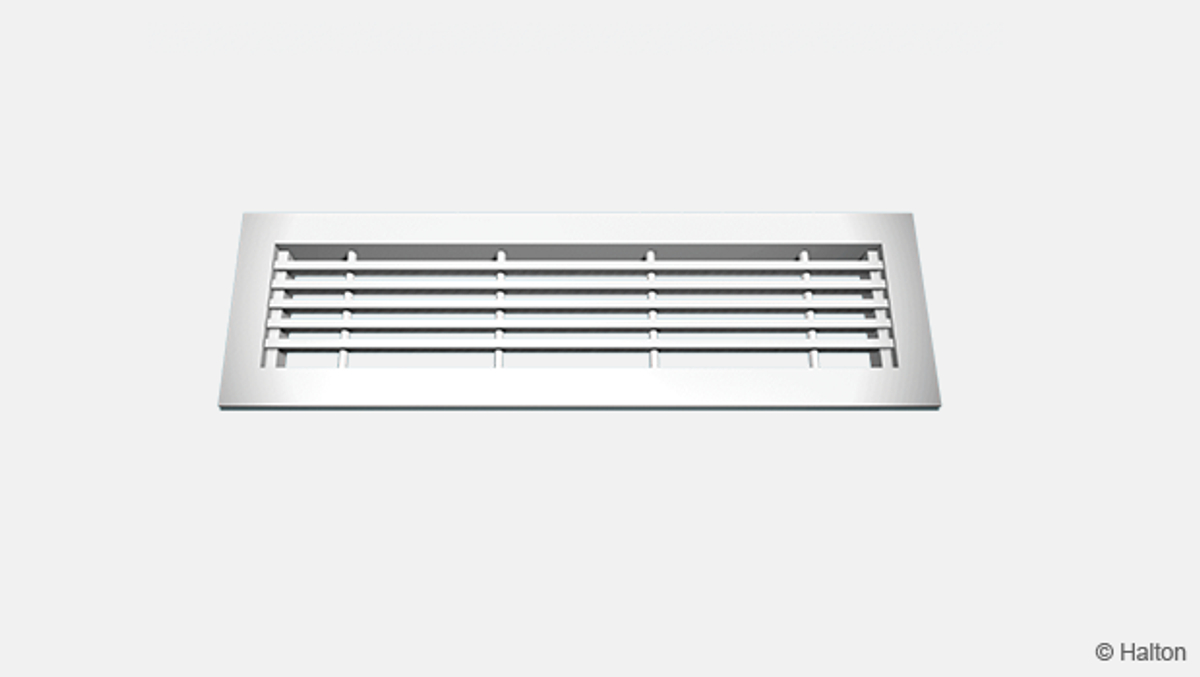

FLE 地板格栅
product

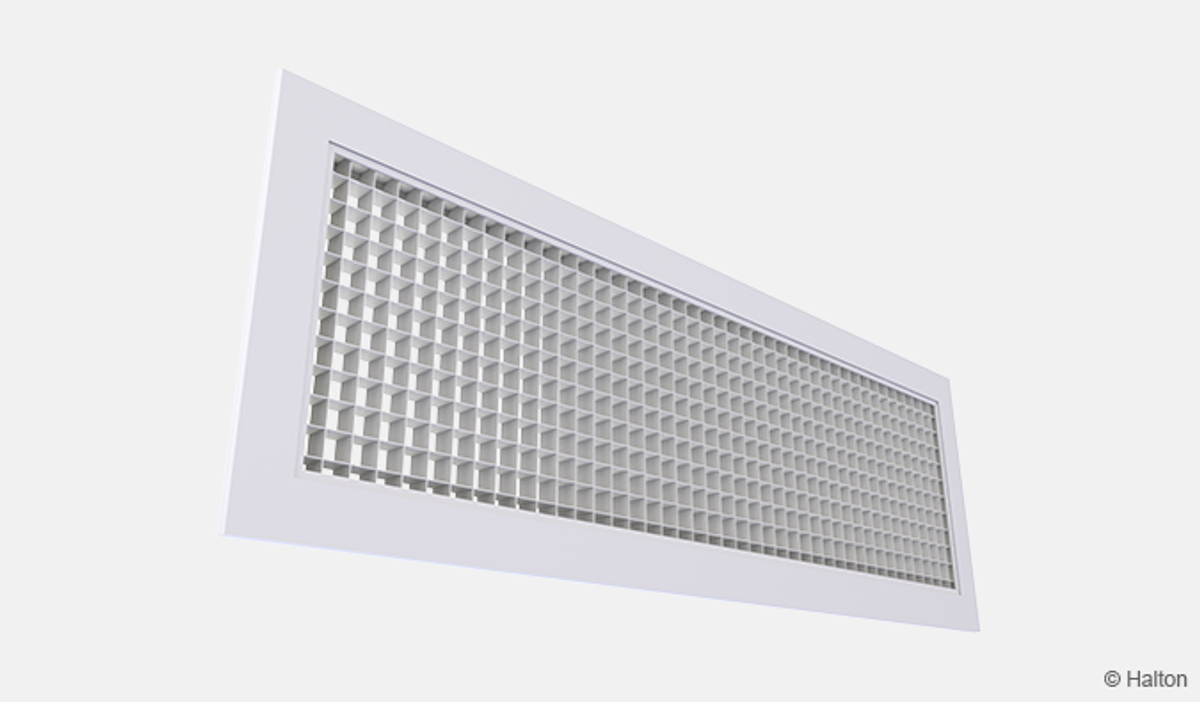

Halton AGC – 排风格栅
product

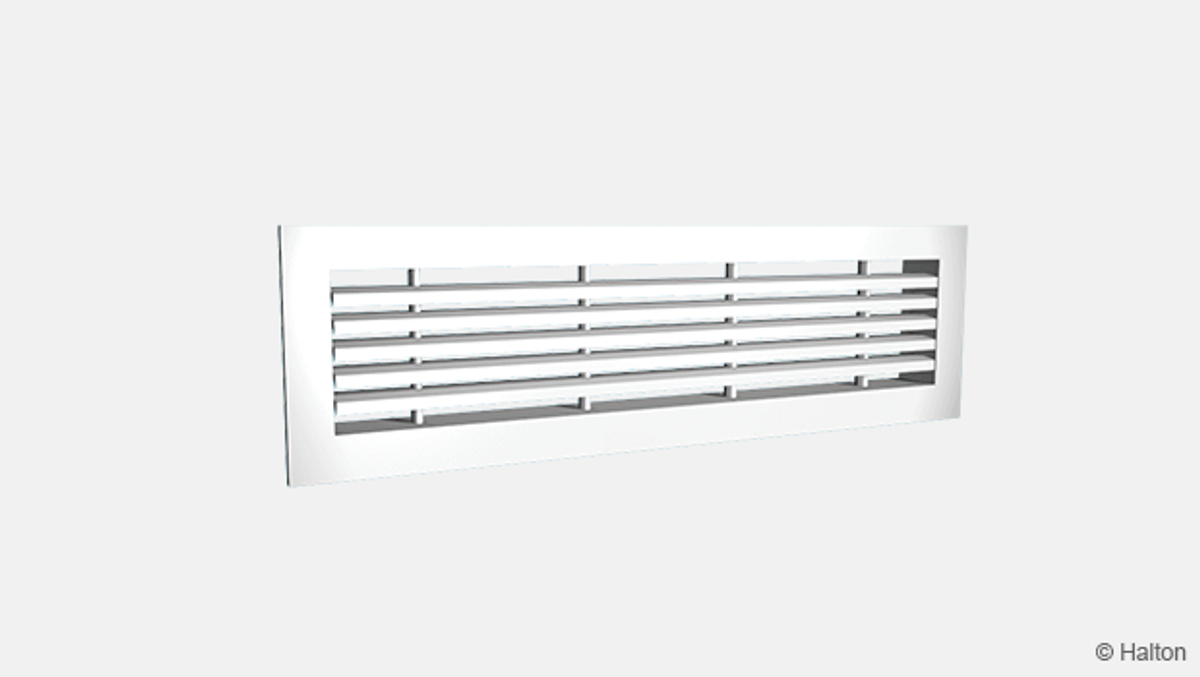

Halton ALE-C 单层百叶风口
product
Halton AWE-C 双层百叶风口
product

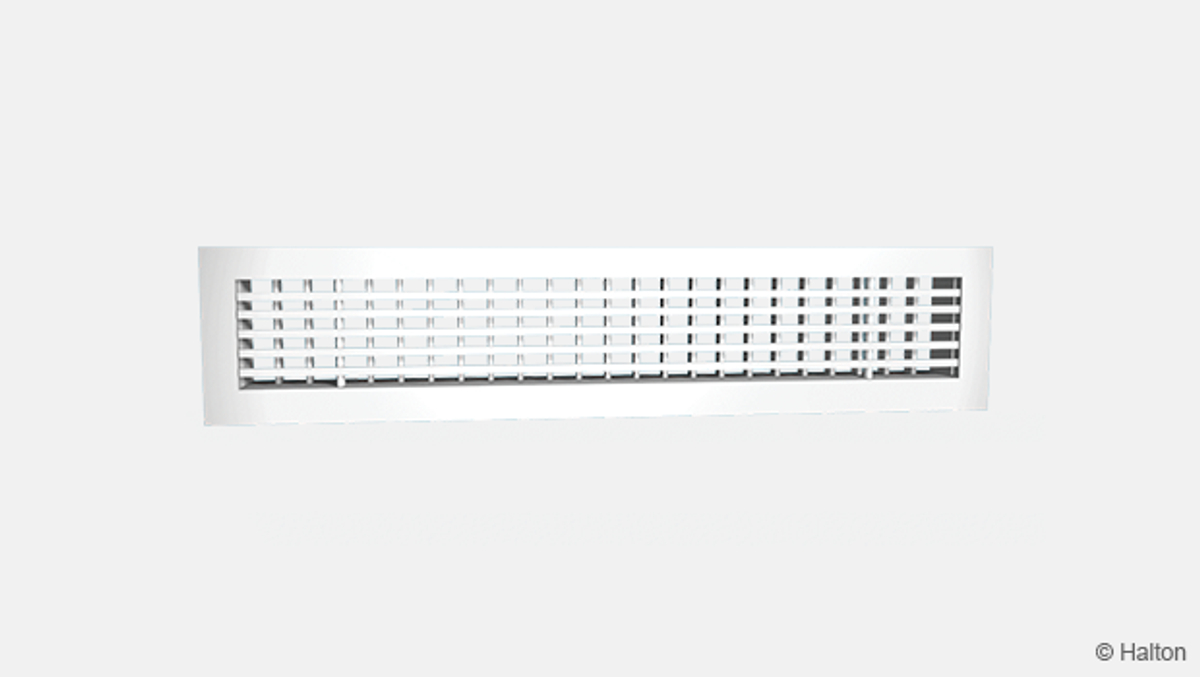

Halton AWU 一款带有可调式后排叶片的通用格栅
product

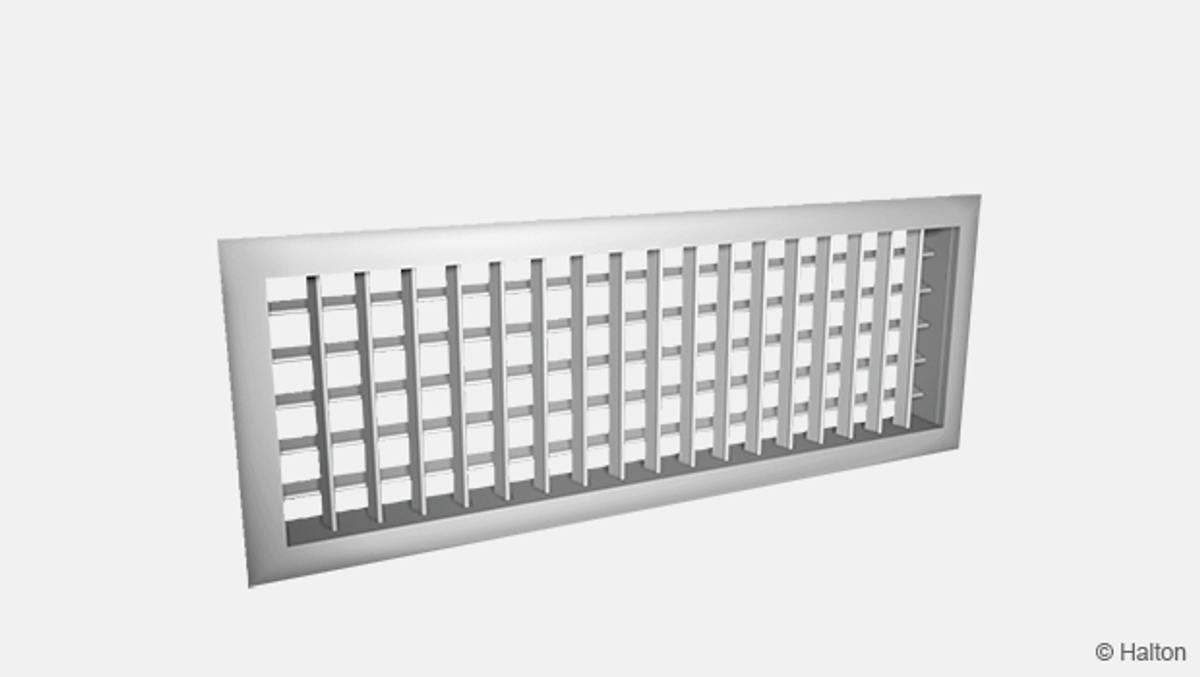

Halton WDD-C 双层百叶风口
