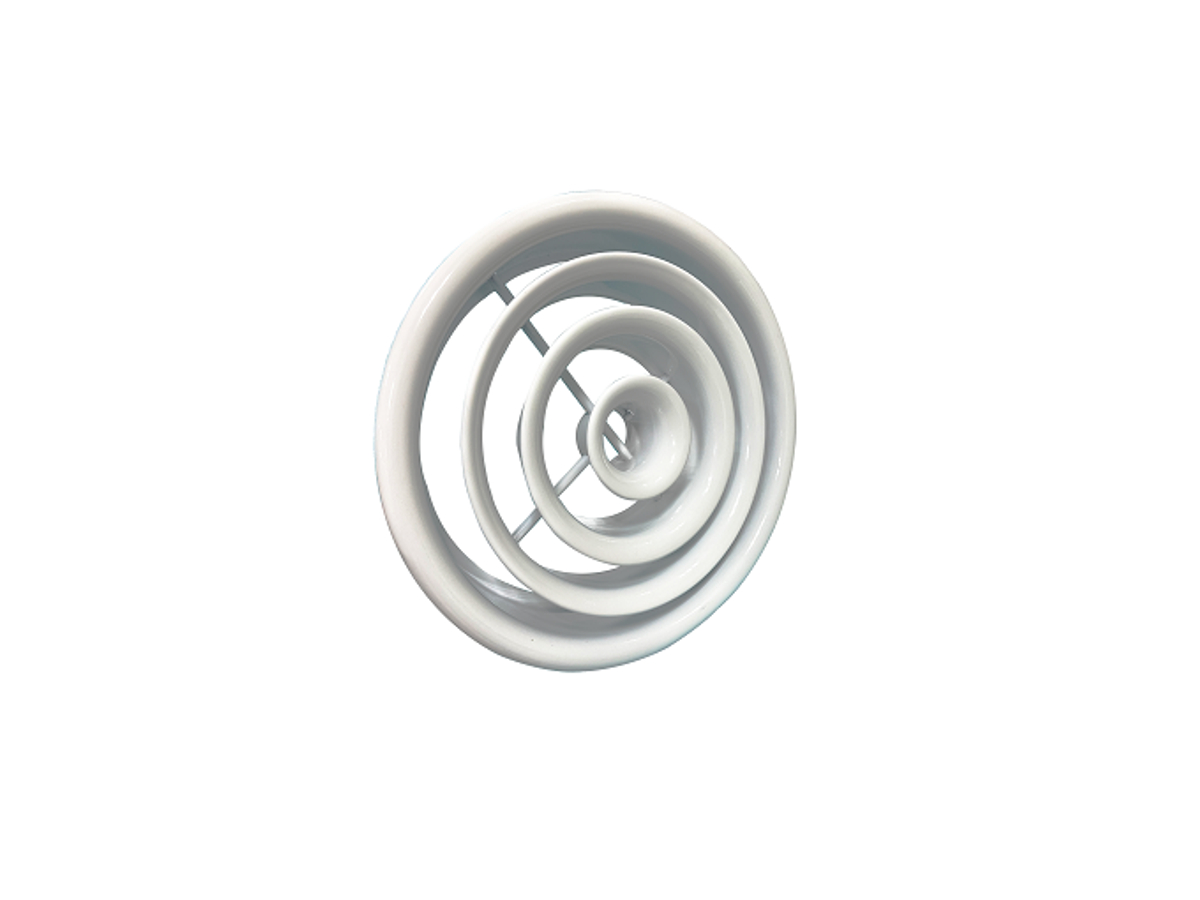

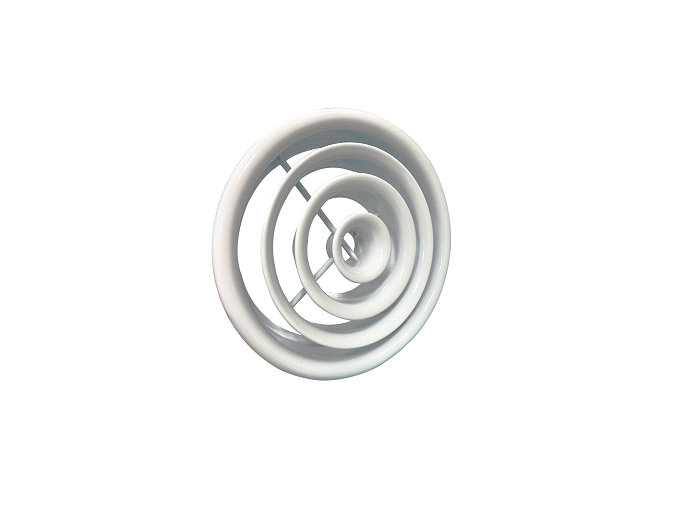

Halton TRS-C 可调喷流风口
适用于较远距离的送风
Suitable for long distance air suppl
概述Overview
- 适用于较远距离的送风
- 投送角度可调节为上下30度。
- 表面处理：粉末喷涂
- 可选附件: 静压箱
- 调节锥形模块，改变气流投送方向
- Suitable for long distance air supply.
- To change airflow direction with adjustment of rotating cone module.
- The airflow direction can be adjusted ±30 degree.
- Surface treatment: Power painting
- Optional accessories: Plenum
尺寸Dimensions
| 规格Size | ØD | ØD1 | 可选静压箱Plenum option | 静压箱进风口Plenum inlet size |
| Ø200 | 199 | 245 | (D+60) x (D+60) x 300 | Ø100 |
| Ø300 | 299 | 345 | (D+60) x (D+60) x 300 | Ø150 |
| Ø400 | 399 | 455 | (D+60) x (D+60) x 300 | Ø200 |
| Ø500 | 499 | 560 | (D+60) x (D+60) x 300 | Ø250 |
安装Installation
确保安装孔尺寸大于等于Φ D。与静压箱相连使用可固定方式。
Ensure the installation hole size not less than Φ D, Plenum and diffuser connection is fixed.
